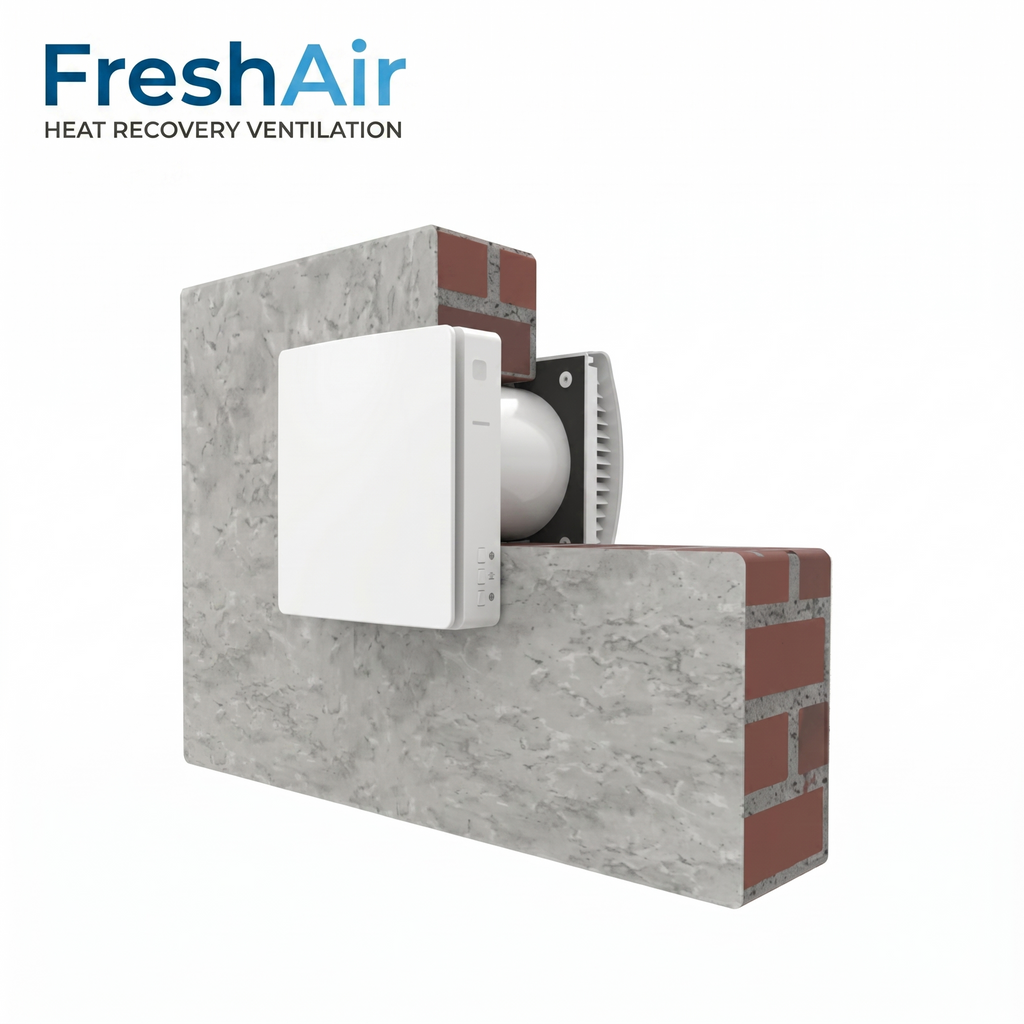

FreshAir Eco Vent Turbo AV-TTW5-W

Smart Ventilation. Exceptional Heat Recovery. Total Climate Control.

Elevate your indoor air quality and maximize your energy savings with the FreshAir Eco Vent Turbo AV-TTW5-W. This advanced, through-the-wall Energy Recovery Ventilator (ERV) is engineered to deliver a continuous supply of fresh air without sacrificing your home's thermal comfort.

At the heart of the system is a high-efficiency ceramic energy regenerator that reclaims up to 97% of the heat from outgoing air. By alternating between supply and exhaust modes in precise 75-second cycles, it creates a perfectly balanced indoor climate while significantly reducing your heating and cooling costs.

Key Features & Smart Functionality

• Intelligent Climate Control: Manage your home's air quality effortlessly. Choose from three whisper-quiet fan speeds, or activate the "Boost Mode" for rapid ventilation. Control the unit via manual onboard buttons, the included infrared remote, or connect it to your Wi-Fi to use the Smart Life app.

• Voice Command Compatibility: Enjoy true hands-free convenience with seamless integration for Amazon Alexa and Google Assistant.

• Synchronized Whole-Room Airflow: The system supports master-slave pairing, allowing you to link two units together for perfectly synchronized, alternating ventilation across larger spaces.

• Automated Maintenance Alerts: Never guess when it's time for maintenance; a built-in red light indicator will alert you the moment your filter needs replacing.

• Customizable Upgrades: Tailor the system to your specific needs with optional integrations, including a negative ion generator for enhanced air purification, and app-based CO₂ and humidity monitoring.

Seamless & Adaptable Installation

Designed with flexibility in mind, the unit features an adjustable telescopic duct that easily accommodates wall thicknesses from 280 mm to 470 mm. Best of all, the system requires no complex condensate drainage. (Note: To ensure safety and compliance with national electrical and building codes, installation must be performed by a qualified professional).

Technical Specifications

• Model: FreshAir Eco Vent Turbo AV-TTW5-W

• Maximum Airflow: Up to 60 m³/h (in Boost Mode)

• Thermal Efficiency: Up to 97% heat recovery

• Acoustic Performance: Ultra-quiet 32.7 dB(A) sound pressure level

• Specific Energy Consumption (SEC): Class A

• Power Input: 6–7.8 W

• Supply Voltage: 100–240V~, 50/60Hz

• Duct Dimensions: Ø158 mm diameter | Telescopic length: 280–470 mm

• Net Weight: 4.2 kg

• Control Options: Manual buttons, IR remote, Wi-Fi (Smart Life app), Alexa/Google Assistant

• Optional Features: Negative ion generator, CO₂ monitoring, humidity monitoring

• Installation Type: Through-wall mounting (No condensate drainage required)
